Product Overview
6 MP outdoor-ready with 360° panoramic view and audio capture:

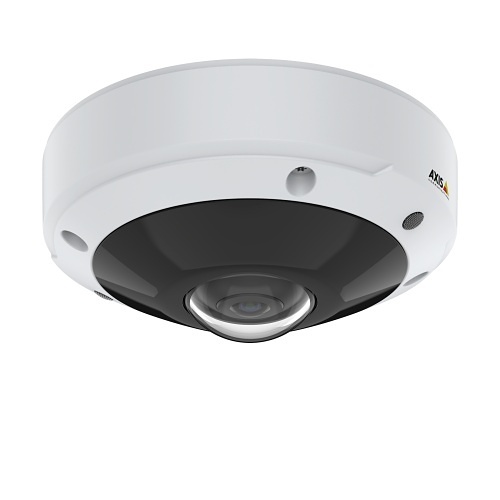

With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
General Information
Name : AXIS M3077-PLVE M39 Series 6MP Outdoor Vandal Resistant 360° Panoramic Fixed Dome IR WDR IP Camera, 1.56mm Lens, White , AXIS Communications
Category : Panoramic Cameras
UPC Code : 7331021070813
Country of Origin : Thailand. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02018001
Brand Name : Axis Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02018-001
NDAA Compliant : Yes
Product Line : M
Product Model : M3077
Product Name : M3077-PLVE Network Camera
Product Series : M30
Product Type : Network Camera
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 6MP
Field of View : Horizontal field of view: 183° Vertical field of view: 183°
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/2
Maximum Frame Rate : 60 fps
Minimum Focal Length : 1.56 mm
Night Vision : Yes
Night Vision Type : Infrared
Camera
Night Vision Distance : 65.62 ft
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Maximum Video Resolution : 2560 x 1920
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -40°F (-40°C)
Operating Humidity : 100%
Exposure
Longest Shutter Speed : 1 Second
Shortest Shutter Speed : 1/16000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 1.55 mm
Lens Included : Yes
Maximum Focal Length : 1.56 mm
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : Z4-0548001
Model Number Replaces : 0548-001
Physical Characteristics
Color : White
Color Family : White
Durability : Dustproof, Impact Resistant, Waterproof
Form Factor : Dome
Height : 2.6"
Product Color : White
Weight (Approximate) : 1.54 lb
Product Information
Diameter : 5.9"
Mount Type : Ceiling Mount, Conduit Mount, Corner Mount, Pendant Mount, Pole Mount, Surface Mount, Wall Mount
Storage
Storage Type : Memory Card
Warranty
Limited Warranty : 5 Years
Miscellaneous
Features : Audio Detection, Auto Gain Control, Automatic White Balance, Built-in IR LED, Built-in Microphone, Day/Night, Motion Detection, Multi-view Stream, Noise Reduction, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Tampering Alarm, Video Management System, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IP66
Package Contents : <ul><li>M3077-PLVE Network Camera</li><li>Installation Guide</li><li>Windows Decoder 1-user license</li><li>Drill Hole Template</li><li>Cable Gaskets</li><li>Connector Guard</li><li>I/O Connector</li><li>RESISTORX TR20 bit</li><li>and more below</li></ul>, Cable Hole Lid, Mounting Bracket, View Protector
