Product Overview
Compact, varifocal, D/N mini dome with dust- and vandal-resistant casing for easy indoor mounting. 3-6 mm lens with remote zoom and focus simplifying the installation. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 4MP in 4:3, 3MP in 16:9, max 30 fps with WDR. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced analytics. Axis Object Analytics, video motion detection and active tampering alarm. HDMI output (micro). MicroSD memory card slot for optional local video storage. AXIS Edge Vault for increased Cyber Security
General Information

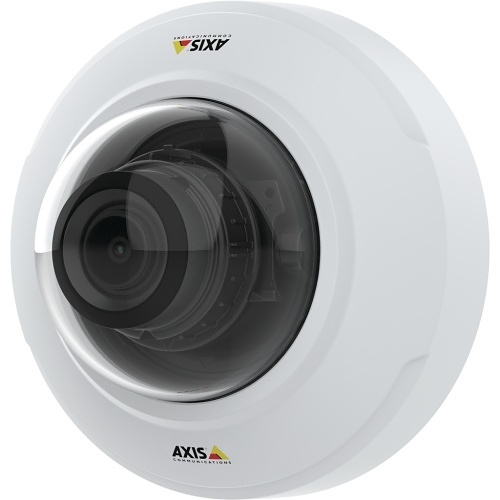

Name : AXIS M4216-V M42 Series 4MP Vandal Resistant Fixed Dome WDR IP Camera, 3-6mm Varifocal Lens, White , AXIS Communications
Category : Dome Cameras
UPC Code : 7331021072800
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02112001
Brand Name : Axis Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02112-001
NDAA Compliant : Yes
Product Line : M
Product Model : M4216-V
Product Name : M4216-V Dome Camera
Product Series : M42
Product Type : Network Camera
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 4MP
Field of View : Horizontal field of view: 100°-45° Vertical field of view: 72°-34°
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.9
Maximum Frame Rate : 60 fps
Minimum Focal Length : 3 mm
Optical Zoom : 2x
Camera
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Maximum Video Resolution : 2304 x 1728
Environmental Conditions
Maximum Operating Temperature : 113°F (45°C)
Minimum Operating Temperature : 32°F (0°C)
Operating Humidity : 85%
Exposure
Longest Shutter Speed : 1/5 Second
Shortest Shutter Speed : 1/37500 Second
Interfaces/Ports
HDMI : Yes
Network (RJ-45) : Yes
Lens
Focal Length : 3-6 mm
Lens Included : Yes
Maximum Focal Length : 6 mm
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : Z4-01240001
Model Number Replaces : 01240-001M4206-V
Physical Characteristics
Color : White
Durability : Dust Resistant, Impact Resistant, Water Resistant
Form Factor : Dome
Height : 2.8"
Weight (Approximate) : 12.35 oz
Product Information
Diameter : 4.8"
Mount Type : Ceiling Mount, Pendant Mount, Recessed Mount, Surface Mount, Wall Mount
Storage
Storage Type : Memory Card
Warranty
Limited Warranty : 5 Year
Miscellaneous
Features : Day/Night, Human Detection, Mirror, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Vehicle Detection, Wide Dynamic Range
Impact Protection Rating : IK08
Indoor/Outdoor : Indoor
Ingress Protection Rating : IP42
Package Contents : <ul> <li>M4216-V Dome Camera</li> <li>Installation Guide</li> <li>Windows decoder 1-User License</li> </ul>
TAA Compliant : Yes
