Product Overview
With 7 MP resolution and seamless stitching of all four images, this multisensor camera offers complete coverage and excellent image quality with incredible details up to 30 fps. It delivers 180° horizontal and 90° vertical coverage with no blind spots. Plus, it’s possible to mount two cameras back-to-back for a complete 360° overview. Including horizon straightening, this product will give an excellent viewing experience, enabling to set the horizon in the image. Built on ARTPEC-8, this cost-effective camera supports advanced analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system.
General Information

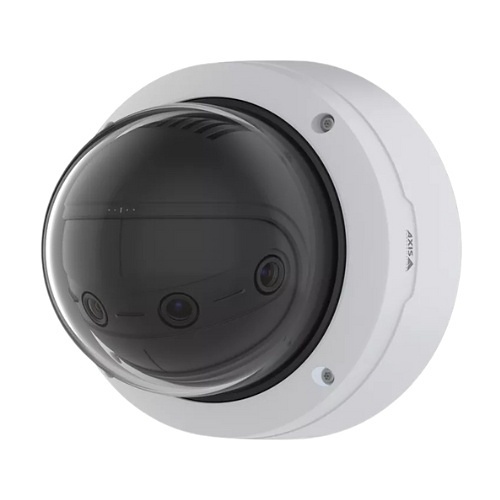

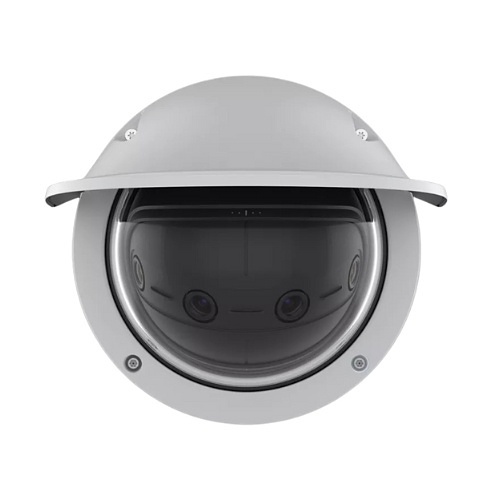

Name : AXIS P3827-PVE 7MP Multisensor Panoramic IP Camera, 3.3mm, 180-Degree Coverage, White (Replaces 01048-004) , Axis Communications
Category : Panoramic Cameras
UPC Code : 7331021077423
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02450001
Brand Name : Axis Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02450-001
Product Line : P
Product Model : P3827-PVE
Product Name : AXIS P3827-PVE Panoramic Camera
Product Series : P38
Product Type : Network Camera
weight : 5.07 lb
Technical Information
Connectivity Technology : Wired
Field of View : Horizontal field of view: 180° Vertical field of view: 90°
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/2.0
Maximum Frame Rate : 30 fps
Minimum Focal Length : 3.3 mm
Night Vision : Yes
Night Vision Type : Infrared
Video Formats : H.264, H.264B, H.264H, H.265, H.265M, Motion JPEG
Camera
Image Sensor Type : RGB CMOS
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66, IP67
TAA Compliant : Yes
Display & Graphics
Color Supported : Color
Maximum Video Resolution : 3712 x 1856
Number of Sensors : 4
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Minimum Operating Temperature : -40°F (-40°C)
Operating Humidity : 100%
Exposure
Longest Shutter Speed : 1.5 Second
Shortest Shutter Speed : 1/31500 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 3.3 mm
Lens Included : Yes
Maximum Focal Length : 3.30 mm
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : Z4-01048004
Model Number Replaces : 01048-004
Physical Characteristics
Color : White
Color Family : White
Durability : Dustproof, Impact Resistant, Waterproof
Form Factor : Dome
Height : 6.7"
Product Color : White
Weight (Approximate) : 5.07 lb
Power Description
Input Voltage : 12V DC
Product Information
Diameter : 7.7"
Mount Type : Bracket Mount, Ceiling Mount, Conduit Mount, Junction Box Mount, Wall Mount
Storage
Storage Type : Memory Card
Warranty
Limited Warranty : 5-Year
Miscellaneous
Country of Origin : MX
Features : 2D Noise Reduction, 3D Noise Reduction, Audio Detection, Auto Gain Control, Motion Detection, Multi-view Stream, Noise Detection, PTZ, Tampering Alarm, Wide Dynamic Range
Impact Protection Rating : IK10
Package Contents : AXIS P3827-PVE Panoramic Camera AXIS TQ3901 Gasket M20 Cable Gasket C M20 Gasket C M20 Cable 3-5 mm AXIS Q36-VE Clear/Smoked Domes AXIS ACI Conduit Adapter 3/4" U-Shape 30 mm AXIS TQ3902 Mount Bracket AXIS TQ3802-E Cover Weathershield
