Product Overview
Camden Door Controls, CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer. The CM-9600 is single gang (2 3/4”) width and the CM-9610 is only (1 3/4”) wide, perfect for door frames or narrow areas. The large 1” round diameter button is easy to activate. Illumination and power relay is 12 to 24V DC.
Switch illumination is jumper selectable for On, Off and Red, Green or non-lit operation. Field selectable for N/O, N/C contacts and fail safe/fail secure operation.
General Information

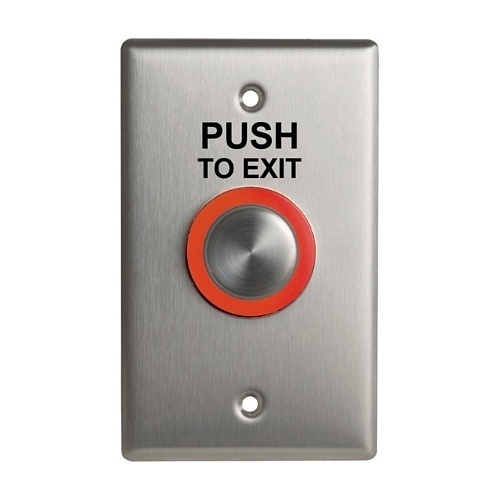

Name : Camden CM-9600/7 Illuminated Piezoelectric 'Request to Exit Button', Stainless-Steel Faceplate, Single Gang , Camden Door Controls
Category : Door Release Buttons
UPC Code : 670454157003
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : CM-96007
Brand Name : Camden Door Controls
Manufacturer : Camden Door Controls
Manufacturer Part Number : CM-9600/7
Product Model : CM-9600/7
Product Name : Illuminated Piezoelectric Push/Exit Switch
Product Series : CM-9600
Product Type : Activation
Technical Information
Button Size : 1"
Gang Type : Single Gang
Material : Stainless Steel
Maximum Timer Duration : 40-Second
Minimum Timer Duration : 1 Second
Environmental Conditions
Maximum Operating Temperature : 179.6°F (82°C)
Minimum Operating Temperature : -40°F (-40°C)
Physical Characteristics
Color : Silver
Product Material : Stainless Steel
Width : 2.8"
Power Description
Input Voltage : 12V DC, 24V DC
Product Information
Print/Message : Push To Exit
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
