Product Overview

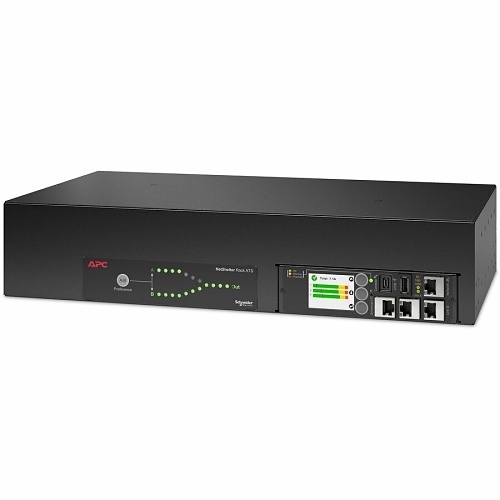

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4431A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4431A is single phase 2U Rack ATS with 30A rated current, 208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with 2 NEMA L6-30P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
General Information
Name : APC AP4431A Netshelter Rack Automatic Transfer Switch, 208V, 30A , APC by Schneider Electric
Category : Power Distribution Units
UPC Code :
Specifications
General Information
ADI Part Number : 2G-AP4431A
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : AP4431A
Product Line : NetShelter
Product Name : NetShelter Automatic Transfer Switch
Product Type : Automatic Transfer Switch
Sector : Intrusion
Weight : 14.51 lb
Interfaces/Ports
Receptacles : 1 x NEMA L6-30R
Physical Characteristics
Color : Black
Depth : 9.3"
Form Factor : Rack Mount
Height : 3.5"
Rack Height : 2U
Width : 17"
Power Description
Input Voltage : 200V AC
Plug/Connector Type : NEMA L6-30P 24A (2P + E)
Warranty
Limited Warranty : 2-Year
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>NetShelter Automatic Transfer Switch</li> <li>Mounting Hardware</li> <li>Rack Mounting Brackets</li> <li>Serial Configuration Cable</li> </ul>
