Product Overview

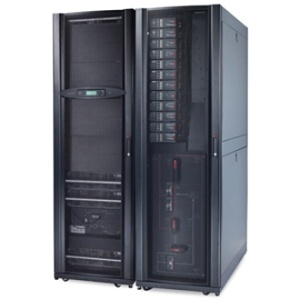

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.
General Information
Name : APC SY32K96H Symmetra PX Scalable UPS 32kW, 400V , APC by Schneider Electric
Category : UPS
UPC Code :
Specifications
General Information
ADI Part Number : 2G-SY32K96H
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : SY32K96H
Product Line : Symmetra
Product Model : SY32K96H
Product Name : Symmetra PX SY32K96H 32kVA Tower UPS
Product Series : PX
Product Type : Double Conversion Online UPS
Sector : Intrusion
Weight : 2268.56 lb
Technical Information
Output Voltage : 230V AC, 400V AC
Overload Protection : Yes
Phase : Three Phase
Battery Information
Battery Chemistry : Lead Acid
Battery Life : 8 Year
Battery Recharge Time : 3.5-Hour
Maximum Operating Humidity : 0.95
Environmental Conditions
Minimum Storage Temperature : 0.95
Thermal Dissipation : 1508.14W
Management
Network Management : SNMP Manageable
Physical Characteristics
Depth : 42.1"
Height : 78.4"
Rack Height : 42U
Width : 47.2"
Power Description
Input Frequency : 40 Hz|70 Hz
Input Voltage : 400V
Output Frequency : 50 Hz|60 Hz
Waveform Type : Sine Wave
Warranty
Limited Warranty : 1-Year
Miscellaneous
Environmental Certification : ISO
Environmentally Friendly : Yes
