Product Overview

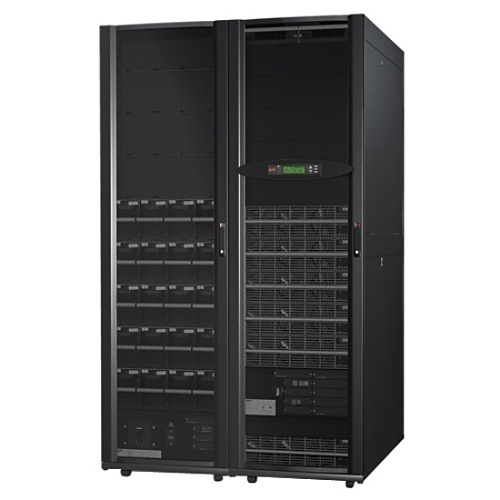

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.
General Information
Name : APC SY50K100F Symmetra PX 50kW Scalable to 100kW, 208V , APC by Schneider Electric
Category : UPS
UPC Code :
Specifications
General Information
ADI Part Number : 2G-SY50K100F
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : SY50K100F
Product Line : Symmetra
Product Model : SY50K100F
Product Name : Symmetra PX SY50K100F 50kVA Tower UPS
Product Series : PX
Product Type : Double Conversion Online UPS
Sector : Intrusion
Weight : 2828 lb
Technical Information
Output Voltage : 208V AC
Receptacle Detail : 1 x Hard Wire 5-wire
Receptacle Type : Hard Wire 5-wire
Transfer Time : 2 ms
Battery Information
Battery Characteristics : Valve Regulated Lead Acid (VRLA)
Battery Chemistry : Lead Acid
Battery Recharge Time : 2-Hour
Environmental Conditions
Maximum Operating Elevation : 3333'
Maximum Operating Temperature : 104�F
Maximum Storage Elevation : 5000'
Management
Network Management : SNMP Manageable
Physical Characteristics
Application/Usage : Data Center
Depth : 42"
Height : 79.2"
Width : 47.2"
Power Description
Input Frequency : 70 Hz
Input Voltage : 220V AC
Output Frequency : 60 Hz
Warranty
Limited Warranty : 1-Year
Miscellaneous
Environmental Certification : FCC, Green Premium, ISO, UL
Environmentally Friendly : Yes
Package Contents : <ul><li>Symmetra PX SY50K100F 50kVA Tower UPS</li><li>Installation Guide</li><li>Network Management Card</li><li>User Manual</li><li>5 x Battery Modules</li></ul>
