Product Overview
Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
General Information

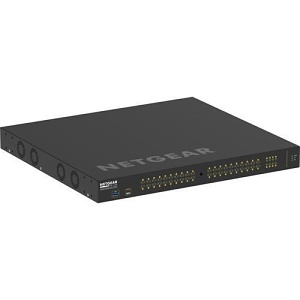

Name : Netgear GSM4352-100NES 48-Port Gigabit PoE+ Compliant Managed AV IP Switch , Netgear
Category : Pro AV Switches
UPC Code : 606449161953
Country of Origin : Thailand. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : W9-GSM435210
Brand Name : Netgear
Manufacturer : Netgear, Inc
Manufacturer Part Number : GSM4352-100NES
Product Line : AV Line
Product Model : M4350-48G4XF
Product Name : AV Line M4350-48G4XF Ethernet Switch
Product Series : M4350
Product Type : Ethernet Switch
Weight (Approximate) (g) : 7190
Technical Information
Media Type Supported : Optical Fiber, Twisted Pair
Network Switch Type : Managed
Power Consumption : 550W
I/O Expansions
Expansion Slot Type : SFP+
Number of SFP+ Slots : 4
Number of Total Expansion Slots : 4
Interfaces/Ports
Modular : Yes
Network (RJ-45) : Yes
Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet Expansion Slots, 48 x Gigabit Ethernet PoE+
Total Number of Network Ports : 48
Uplink Port : Yes
Management & Protocols
Manageable : Yes
Media & Performance
Network Technology : 10/100/1000Base-T, 10GBase-X
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 3
Networking Standards : IEEE 802.1ak, IEEE 802.1as, IEEE 802.1AX, IEEE 802.1BA, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Physical Characteristics
Compatible Rack Unit : 1U
Depth : 15.7"
Depth (mm) : 400
Form Factor : Rack Mount, Table Top
Height : 17"
Height (mm) : 432
Weight (Approximate) : 15.85 lb
Width : 14.4 ft
Width (mm) : 4400
Power Description
Frequency : 50 Hz|60 Hz
Frequency (Hz) : 50, 60
Input Voltage : 120V AC, 230V AC
Number of Power Supplies Installed : 1
Number of Power Supplies Supported : 2
Plug/Connector Type : C14
PoE (RJ-45) Port : Yes
PoE Budget : 236 W
PoE Budget (W) : 236
Power Consumption (W) : 550.000
Power Source : AC, PoE+, Power Supply
Redundant Power Supply Supported : Yes
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : ErP, EuP, REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : <ul><li>AV Line M4350-48G4XF Ethernet Switch</li><li>Power Cord(s)</li><li>USB Type-C To USB-A 2.0 Console Cable</li><li>Rubber Caps For The SFP+/SFP28/QSP28 Sockets</li><li>Rubber Footpads For Tabletop</li><li>and more below</li></ul>, installation Installation Guide, Longer Brackets for Recessed Mounting, Rackmounting Standard Brackets
