Product Overview
Offering an IR-corrected lens, this compact, easy-to-install camera delivers professional-quality video both day-and-night. It features a tally LED to indicate video streaming or recording. And AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. A deep learning processing unit enables advanced features and powerful analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network
General Information

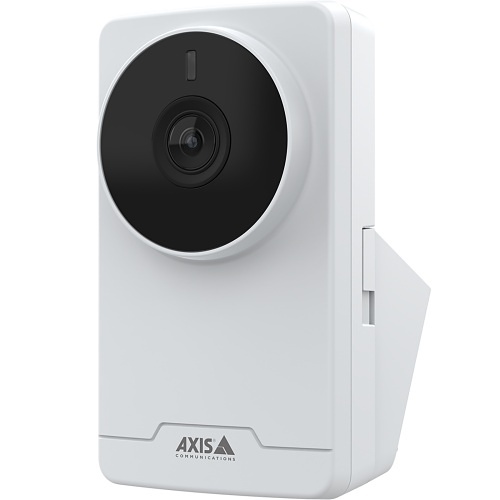

Name : AXIS M1055-L M10 Series 2MP IR Box IP Camera with Deep Learning, 3.16mm Fixed Lens, White , AXIS Communications
Category : Box Cameras
UPC Code : 7331021076228
Country of Origin : Poland. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02349001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02349-001
Product Line : M
Product Model : M1055-L
Product Name : AXIS M1055-L BOX CAMERA
Product Series : M10
Product Type : Fixed cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Weight : 4.83 oz
Technical Information
Aperture : f/2.0
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : Horizontal, Vertical
Lens Type : Fixed
Maximum Aperture : f/2.0
Maximum Frame Rate : 30 fps
Minimum Focal Length : 3.16 mm
Night Vision : Yes
Night Vision Type : Infrared
Video Formats : H.264, H.265, MJPEG, MPEG-4
Camera
Image Sensor Type : CMOS
Night Vision Distance : 59 ft
Wide Dynamic Range : Yes
Display & Graphics
Image Sensor Size : 1/2.9"
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 95°F (35°C)
Minimum Operating Temperature : 32°F (0°C)
Operating Humidity : 85%
Operating Temperature (T-T) : 0-35°C
Exposure
Longest Shutter Speed : 1/5 Second
Minimum Illumination : 0 lux
Shortest Shutter Speed : 1/19000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 3.16mm
Lens Included : Yes
Maximum Focal Length : 3.16 mm
Memory
Memory Card Supported : Yes
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : Z4-0555004, Z4-0555024, Z4-0812004
Model Number Replaces : 0555-004, 0555-024, 0812-004
Physical Characteristics
Color : White
Power Description
Maximum Power Consumption : 4W
Power over Ethernet (PoE) : Yes
Product Information
Mount Type : Box Mount, Wall Mount
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Maximum Resolution : 1280 x 720
Miscellaneous
Certifications : CISPR 32 Class A, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Country of Origin : PL
Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78
Features : Day/Night, Electronic Image Stabilization, Human Detection, Mirror, Privacy Masking, Removable IR Cut-off Filter, Vehicle Detection, Video Content Analytics, White Balance, Wide Dynamic Range
