Product Overview

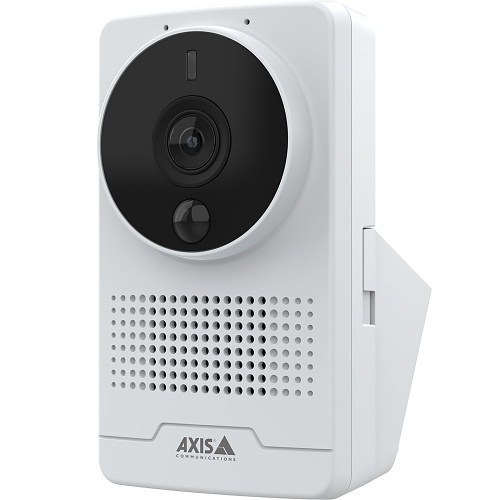

AXIS M1075-L offers excellent two-way audio communication and an IR-corrected lens to deliver professional-quality video both day-and-night. It includes a tally LED to indicate video streaming or recording. And, a passive infrared (PIR) sensor can detect movement even in total darkness. This compact camera includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Built-in cybersecurity features prevent unauthorized access and safeguard your system. Furthermore, it includes a HDMI port and with support for Session Initiation Protocol (SIP), it’s easy to integrate with IP-systems. Optional wireless kit available.
General Information
Name : AXIS M1075-L M10 Series 2MP HDTV IR Box Camera with PIR Sensor and Two-Way Audio Communication, 3.16mm Fixed Lens, White , AXIS Communications
Category : Box Cameras
UPC Code : 7331021076235
Country of Origin : Poland. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02350001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02350-001
Product Line : M
Product Model : M1075-L
Product Name : AXIS M1075-L BOX CAMERA
Product Series : M10
Product Type : Fixed cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Technical Information
Aperture : f/2.0
Built-in Microphone : Yes
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : Horizontal, Vertical
Lens Type : Fixed
Maximum Frame Rate : 30 fps
Night Vision : Yes
Night Vision Type : Infrared
Video Formats : H.264, H.265, MJPEG
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Display & Graphics
Image Sensor Size : 1/2.9"
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Operating Temperature (T-T) : 0-35°C
Exposure
Minimum Illumination : 0 lux
Interfaces/Ports
HDMI : Yes
Network (RJ-45) : Yes
Lens
Focal Length : 3.16mm
Memory
Memory Card Supported : Yes
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : Z4-0810004, Z4-0811001
Model Number Replaces : 0810-004, 0811-001, M1065-LW
Physical Characteristics
Color : White
Form Factor : Cube
Power Description
Maximum Power Consumption : 13W
Power over Ethernet (PoE) : Yes
Product Information
Mount Type : Wall Mount
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Maximum Resolution : 1280 x 720
Miscellaneous
Certifications : CISPR 32 Class A, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Country of Origin : PL
Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78
Features : Built-in Microphone, Built-in Speaker, Day/Night, Motion Detection, Motion Sensor, SD Card Local Storage, Tampering Alarm, Wide Dynamic Range
Indoor/Outdoor : Indoor
