AXIS P3935-LR P39 Series 1080p HDTV Vandal Resistant Onboard IR WDR IP Camera, 2.8mm Lens, Black and White

Brand: AXIS Communications
ADI #:Z4-01919001 Model #: 01919-001  Name: AXIS P3935-LR P39 Series 1080p HDTV Vandal Resistant Onboard IR WDR IP Camera, 2.8mm Lens, Black and White
  • Complies with EN50155, EN45545, and NFPA 130
  • Enhanced security features
  • Invisible IR LEDs, built-in microphone, and EIS

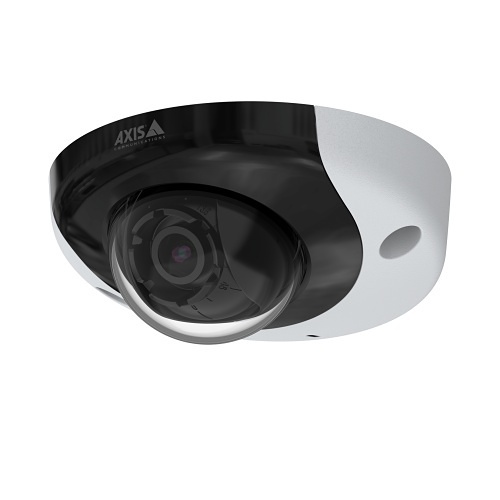

Image of Z4-01919001

Product Overview

Specifically designed for onboard surveillance, AXIS P3935-LR complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. It includes built-in invisible IR LEDs (940 nm) for video surveillance in complete darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera features a built-in microphone for audio surveillance and detection. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.

General Information

Name : AXIS P3935-LR P39 Series 1080p HDTV Vandal Resistant Onboard IR WDR IP Camera, 2.8mm Lens, Black and White , AXIS Communications
Category : IP Mobile & Dashboard Cameras
UPC Code : 7331021069015
Country of Origin : Japan. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : Z4-01919001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 01919-001
Product Line : P
Product Model : P3935-LR
Product Name : AXIS P3935-LR
Product Series : P39
Product Type : Fixed dome cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Weight : 14.11 oz

Technical Information

Aperture : f/1.6
Built-in Microphone : Yes
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : Horizontal, Vertical
Lens Type : Fixed
Maximum Aperture : f/1.6
Maximum Frame Rate : 30 fps
Minimum Focal Length : 2.8 mm
Night Vision : Yes
Video Formats : H.264, H.265, MJPEG, MPEG-4

Camera

Image Sensor Type : CMOS
Night Vision Distance : 49.21 ft
Wide Dynamic Range : Yes

Certifications

Ingress Protection Rating : IP66, IP67
NDAA Compliant : Yes
TAA Compliant : Yes

Display & Graphics

Image Sensor Size : 1/2.9"
Maximum Video Resolution : 1920 x 1080

Environmental Conditions

Maximum Operating Temperature : 158°F (70°C)
Minimum Operating Temperature : -40°F (-40°C)
Operating Humidity : 95%
Operating Temperature (T-T) : -40-55°C

Exposure

Longest Shutter Speed : 2 Second
Minimum Illumination : 0.01 lux
Shortest Shutter Speed : 1/33500 Second

Interfaces/Ports

Network (RJ-45) : Yes

Lens

Focal Length : 2.8mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm

Memory

Memory Card Supported : Yes

Network & Communication

Remote Management : Yes

Others

ADI Part Number Replaces : Z4-01074001, Z4-01074021, Z4-01074031, Z4-01075001, Z4-01075021, Z4-01075031
Model Number Replaces : 01074-001, 01074-021, 01074-031, 01075-001, 01075-021, 01075-031

Physical Characteristics

Color : Black, White
Durability : Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor : Dome
Height : 1.9"

Power Description

Input Voltage : 12V DC
Maximum Power Consumption : 12W
Power over Ethernet (PoE) : Yes

Product Information

Diameter : 4.3"
Mount Type : Pendant Mount, Wall Mount

Storage

Recording Formats : HD

Video

Maximum Resolution : 1280 x 720

Warranty

Limited Warranty : 5-Year

Miscellaneous

Certifications : EAC, ECE R10 rev.05 (​E-ma​rk), EN 50121-3-2, EN 50121-4, EN 50498, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Country of Origin : JP
Environmental Certification : EN 50155 Class OT2/ST2 (2021), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10
Features : Audio Detection, Built-in IR LED, Built-in Microphone, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tampering Alarm
Impact Protection Rating : IK10
Indoor/Outdoor : Indoor, Outdoor
Package Contents : <ul> <li>P3935-LR Network Camera</li> <li>Installation Guide</li> <li>Windows decoder 1-user License</li> <li>Drill Hole Template</li> <li>Lens Tool</li> <li>Resistorx L-Key</li> </ul>
