Product Overview

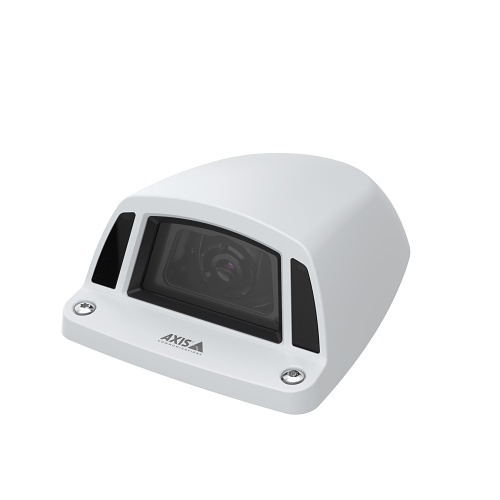

AXIS P3925-LRE specially designed for side view monitoring on buses, trains, and transportation vehicles. It can also be used for identifying maintenance needs on rolling stock, for example, wear and tear of pantograph collector strips. This robust and compact camera features a tempered glass window and complies with transport industry standards and IK10+, IP66, IP67, and IP6K9K. It delivers HDTV 1080p with Lightfinder for color images in poor light and Forensic WDR for maximal forensic usability in mixed light conditions. Plus, built-in IR Illumination enables monitoring in complete darkness. Furthermore, it supports exchangeable lenses for full flexibility.
General Information
Name : AXIS P3925-LRE P39 Series 2MP Onboard Outdoor LED WDR IP Camera, 6.0mm Fixed Lens, White , AXIS Communications
Category : IP Mobile & Dashboard Cameras
UPC Code : 7331021072442
Country of Origin : Japan. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02090001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02090-001
Product Line : P
Product Model : P3925-LRE
Product Name : AXIS P3925-LRE
Product Series : P39
Product Type : Fixed dome cameras
Supported Network Protocols : IPv6 USGv6
Weight : 1.70 lb
Technical Information
Aperture : f/1.9
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : Horizontal, Vertical
Lens Type : Fixed
Maximum Aperture : f/1.9
Maximum Frame Rate : 30 fps
Minimum Focal Length : 6 mm
Night Vision : Yes
Night Vision Type : Infrared
Video Formats : H.264, H.265, MJPEG, MPEG-4
Camera
Image Sensor Type : CMOS
Night Vision Distance : 65.62 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66, IP67
TAA Compliant : Yes
Display & Graphics
Image Sensor Size : 1/2.9"
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Minimum Operating Temperature : -40°F (-40°C)
Operating Humidity : 100%
Operating Temperature (T-T) : -40-55°C
Exposure
Longest Shutter Speed : 2 Second
Minimum Illumination : 0.07 lux
Shortest Shutter Speed : 1/33500 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 6mm
Lens Included : Yes
Maximum Focal Length : 6 mm
Memory
Memory Card Supported : Yes
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : Z4-0662001, Z4-0662021, Z4-0663001, Z4-0663021
Model Number Replaces : 0662-001, 0662-021, 0663-001, 0663-021
Physical Characteristics
Color : White
Durability : Dustproof, Impact Resistant, Waterproof
Form Factor : Board
Power Description
Maximum Power Consumption : 12W
Power over Ethernet (PoE) : Yes
Product Information
Mount Type : Vehicle Mount
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Maximum Resolution : 1280 x 720
Warranty
Limited Warranty : 5-Year
Miscellaneous
Certifications : ECE R10 rev.06, EN 50121-3-2, EN 50121-4, EN 50498, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN35, KCC KN22 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Country of Origin : JP
Environmental Certification : EN 50155 Class OT2/ST2 (2021), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10+ (50J), ISO 20653 IP6K9K, NEMA 250 Type 4X
Features : Day/Night, Defog, Electronic Image Stabilization, Mirror, Motion Detection, Privacy Masking, PTZ, Rugged Design, Shock Detection, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Package Contents : <ul> <li>P3925-LRE Network Camera</li> <li>Installation Guide</li> <li>Windows Decoder 1-User License</li> <li>Drill Hole Template</li> <li>Lens Tool</li> <li>Resistorx L-Key</li> <li>Masking Kit</li> </ul>
