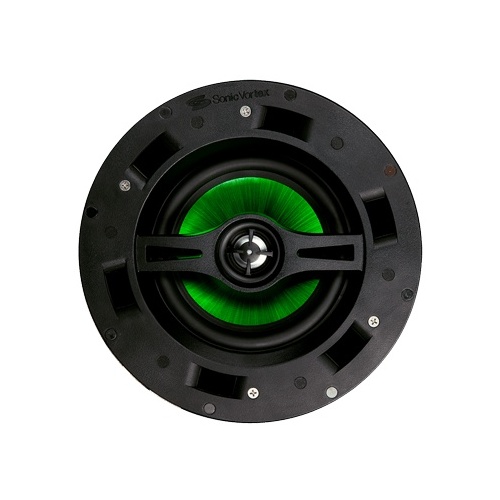

Beale Street ICA6-MB 6.5" 2-Way In-Ceiling Angled Speaker

Brand: Beale Street Audio
ADI #:DX-ICA6MB Model #: ICA6-MB  Name: Beale Street ICA6-MB 6.5" 2-Way In-Ceiling Angled Speaker
  • The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
  • Handles up to 5W of RMS power
  • Hear every detail crisp and clear with a frequency response of 46 Hz-22 kHz
Beale ICA6-MB 2-way In-ceiling, In-wall Speaker - 5 W RMS

Product Overview

LCR angled in ceiling 6.5" 2-way speaker powered by Sonic Vortex Our Sonic Vortex technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a 'twist' on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.

General Information

Name : Beale Street ICA6-MB 6.5" 2-Way In-Ceiling Angled Speaker , Beale Street Audio
Category : Speakers
UPC Code : 741835107778
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : DX-ICA6MB
Brand Name : Beale Street Audio
Manufacturer : Beale Street Audio
Manufacturer Part Number : ICA6-MB
Product Model : ICA6-MB
Product Name : ICA6-MB Speaker
Product Type : Speaker

Technical Information

Crossover Type : 2-way
Impedance : 8 ohms
Sensitivity : 89 dB
Speaker Size : 6.5"
Tweeter Driver Material : Aluminum
Tweeter Driver Size : 1"
Wireless Speaker : No
Woofer Driver Material : Ribbed Injected Polypropylene
Woofer Driver Size : 6.50"

Audio

Maximum Frequency Response : 22 kHz
Minimum Frequency Response : 46 Hz
PMPO Output Power : 120W
RMS Output Power : 5W

Environmental Conditions

Sound Emission : 9 dB

Physical Characteristics

Color : Black
Cutout Diameter : 8.40"
Depth : 6.80"
Form Factor : In-ceiling Mount, In-wall Mount
Woofer Diameter : 6.50"

Product Information

Diameter : 9.4"

Warranty

Limited Warranty : Lifetime
