Product Overview
Machine Screws are uniformly threaded screws designed to be fastened into tapped holes, or used in conjunction with nuts to join two or more assemblies together. Typical applications for machine screws include fastening components of tools, appliances, machines, and electronic devices. ASME B18.3 covers the general requirements for the dimensions and performance of Steel Machine Screws.
General Information
Name : Dottie RMC1438 1/4" x 3/8" Combo Machine Screws, 100-Pack , Dottie
Category : Screws
UPC Code : 781002558019
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : LH-RMC1438
Brand Name : Dottie
Connecting Thread Type : 2A
Head Diameter : 0.472'' - 0.443''
Manufacturer : L.H. Dottie
Manufacturer Part Number : RMC1438
Package Length : 1.54
Package Net Weight : 1.007
Packaged Quantity : 100
Product Model : RMC1438

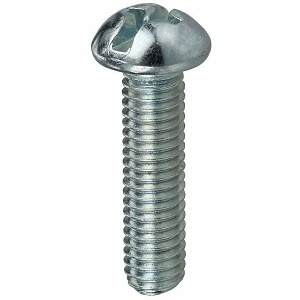

Product Name : 1/4''-20 x 3/8'' Phillips/Slotted Round Head Machine Screw
Product Type : Screw
Technical Information
Material : Carbon Steel
Physical Characteristics
Product Material : Carbon Steel
Product Information
Drive Type : Phillips, Slotted
Fastener Type : Machine Screw
Finishing : Zinc Plated
Head Type : Round
Maximum Fractional Diameter : 0.25"
Maximum Fractional Diameter (mm) : 6.35
Maximum Length : 0.37"
Maximum Length (mm) : 9.398
Threads Per Inch (TPI) : 20
Miscellaneous
Certifications & Standards : Yes
Environmental Certification : California Proposition 65, RoHS
Environmentally Friendly : Yes
