Tripp Lite N224-01K-WH-LP5 CAT6 Gigabit Solid Core UTP Bulk Ethernet Cable, CMP-LP 0.5A Plenum, 100W PoE/PoE++, 1000' (304.8m), White

Brand: Eaton Tripp Lite
ADI #:TC-N2241KWH Model #: N224-01K-WH-LP5  Name: Tripp Lite N224-01K-WH-LP5 CAT6 Gigabit Solid Core UTP Bulk Ethernet Cable, CMP-LP 0.5A Plenum, 100W PoE/PoE++, 1000' (304.8m), White
  • 1000' CAT6 Ethernet Cable for Gigabit networks
  • Supports PoE++ and High-Power PoE up to 100W
  • Plenum-rated CMP-LP jacket for safety

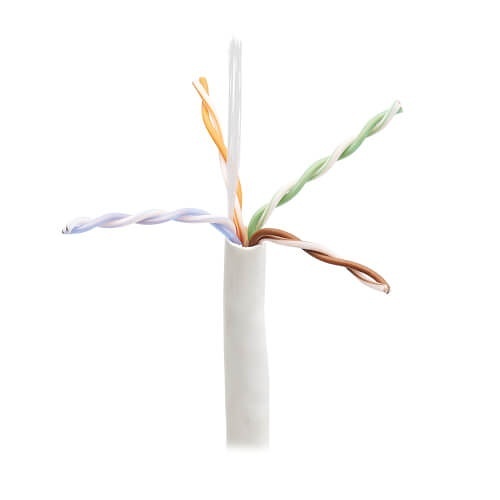

Image of TC-N2241KWH

Product Overview

Premium High-Speed Cat6 Cable for Gigabit Ethernet Premise Applications

This high-speed bulk cable is ideal for Cat6 premise (in-wall) applications in air ducts and drop ceilings in commercial and residential installations. This includes the distribution of data, voice, security and audio/video across Gigabit Ethernet networks. Designed for fast transmission and excellent signal quality, this 1000-foot roll of white cabling ensures peak performance through your LAN. Manufactured from 23 AWG copper wire, the N224-01K-WH-LP5 delivers speeds up to 550 MHz/1 Gbps.

Designed for PoE++ and High-Power PoE Applications

The plenum-rated CMP-LP jacket meets UL's latest Limited Power (LP) standards for 0.5A cables. This ensures the cable will withstand the heat required to power devices at PoE++ (60W) or High-Power (100W) PoE power levels, no matter the bundle size or environmental conditions, such as enclosed spaces.

General Information

Name : Tripp Lite N224-01K-WH-LP5 CAT6 Gigabit Solid Core UTP Bulk Ethernet Cable, CMP-LP 0.5A Plenum, 100W PoE/PoE++, 1000' (304.8m), White , Eaton Tripp Lite
Category : Category 6 Network Cables
UPC Code :

Specifications

General Information

ADI Part Number : TC-N2241KWH
Brand Name : Eaton Tripp Lite
Manufacturer : Eaton
Manufacturer Part Number : N224-01K-WH-LP5
Product Model : N224-01K-WH-LP5
Product Name : Cat6 Ethernet Cable - CMP-LP 0.5A Plenum, White, 1000 ft.
Product Type : Network Cable

Technical Information

American Wire Gauge : 23AWG
Cable Rating : CMP-LP5
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Device Supported : Computer, Modem, Network Device, Router, Surveillance Camera
Jacket Type : Plenum
Shielding : UTP

Category Specific Attributes

Number of Conductors : 4

Certifications

TAA Compliant : Yes

Media & Performance

Data Transfer Rate : 1 Gbit/s

Physical Characteristics

Application/Usage : Commercial, Residential
Cable Length : 1000'
Color : White

Warranty

Limited Warranty : Lifetime

Miscellaneous

Country of Origin : KR
Environmental Certification : REACH, RoHS
Environmentally Friendly : Yes
Features : 4-Pair Power over Ethernet (4PPoE) Support, PoE, PoE+, PoE++
Package Contents : <ul><li>N224-01K-WH-LP5 Cat6 Ethernet Cable - CMP-LP 0.5A Plenum, White, 1000 ft.</li></ul>
