Product Overview

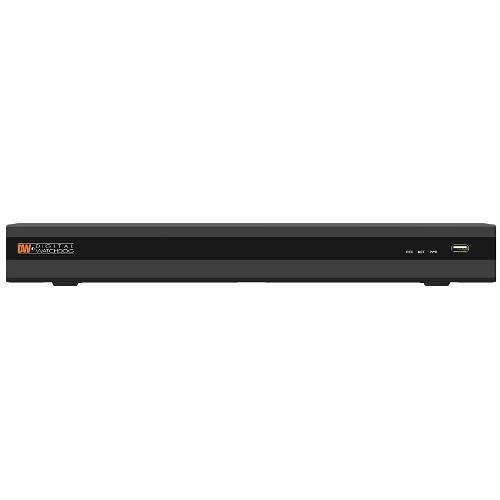

VMAX A1 G4 is an embedded DVR that records standard analog, HD-Analog and HD-TVI formats at up to 4K resolution and 4K local video output. The DVR is a seamless upgrade to HD resolution for new ROI from existing coaxial infrastructure. Up the Coax (UTC) remote configuration is available with all compatible cameras. The 8-channel VMAX A1 G4 model is NDAA and TAA compliant and is available with up to 32TB of storage.
General Information
Name : Digital Watchdog DW-VA1G48 VMAX A1 G4 Universal HD Over Coax 8-Ch DVR, No HDD (Replaces DW-VA1P81T) , Digital Watchdog
Category : Video Surveillance DVRs
UPC Code : 813379019548
Country of Origin : Korea, Republic of. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 6K-VA1G48
Brand Name : Digital Watchdog
Manufacturer : Digital Watchdog
Manufacturer Part Number : DWVA1G48
Maximum Supported Storage Capacity : No storage
Minimum Storage Drive Space : 2TB|No Local Storage
Product Line : VMAX A1 G4
Product Model : DW-VA1G48
Product Name : Universal HD over Coax Digital Video Recorder
Product Type : Video Surveillance Station
Technical Information
Connectivity Technology : Wired
Maximum Frame Rate : 240 fps
Number of Channels : 8
Power Consumption : 48W
Protocols : DHCP, RTSP, Static fixed IP, UPnP
Storage Capacity : No HDD
Video Formats : H.264, MJPEG
Audio
Audio Encoding : ADPCM
Recording Modes : Continuous, Emergency, Motion detection, Pre- and post-alarm, Quick backup, Scheduled, Sensor
Certifications
TAA Compliant : Yes
Display & Graphics
Maximum Video Resolution : 3840 x 2160
Environmental Conditions
Operating Humidity : 0-80% RH
Operating Temperature (T-T) : 41-104°F
Interfaces/Ports
Composite Video Out : Yes
Number of Audio Line In : 8
Number of Audio Line Out : 1
Number of Ethernet Ports : 1
Number of USB Ports : 1
Output Ports : CVBS, VGA
Serial Port : RS485
Network & Communication
Ethernet : Yes
Ethernet Technology : 1 Gigabit Ethernet
Remote Management : Yes
Physical Characteristics
Depth : 10.6"
Dimensions : 1.77" x 14.96" x 10.58", 12.4" x 9.52" x 1.77"
Height : 1.8"
Width : 15"
Storage
Hard Drive Capacity : No HDD
Number of Hard Drives Supported : 2
Recording Formats : 4K
Video
Maximum Resolution : 1280 x 720
Warranty
Limited Warranty : 5-Year
Miscellaneous
Certifications : CE, FCC, NDAA, TAA
Country of Origin : KR
Environmental Certification : RoHS, WEEE
Environmentally Friendly : Yes
Operating System Compatibility : Linux
Package Contents : Mouse
