GRI 199-12-G 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Gray

Brand: George Risk Industries
ADI #:GI-19912G Model #: 199-12-G  Name: GRI 199-12-G 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Gray
  • Lifetime Warranty
  • Colors:White, Brown, Grey or Black
  • UL and ULC Approved

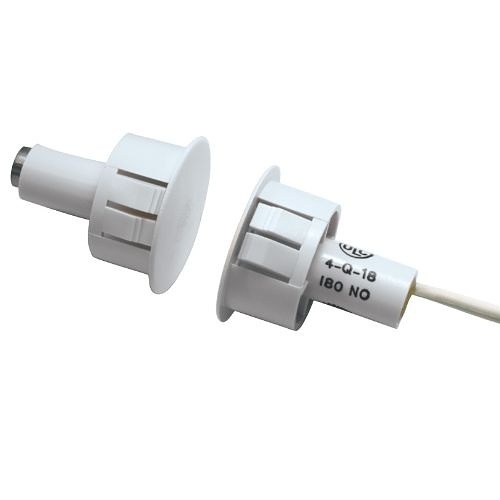

Image of GI-19912G

Product Overview

The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.

The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.

General Information

Name : GRI 199-12-G 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Gray , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625031221
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : GI-19912G
Brand Name : George Risk Industries
Manufacturer : George Risk Industries
Manufacturer Part Number : 199-12-G
Product Model : 199-12-G
Product Name : 199-12-G Magnetic Contact
Product Type : Magnetic Contact

Technical Information

Connectivity Technology : Wired
Contact Form : Form C
Material : Steel
Standard Gap : 0.5"

Physical Characteristics

Application/Usage : Commercial, Industrial, Residential
Color : Gray

Power Description

Power Source : DC

Product Information

Contact Type : DPDT
Diameter : 1"
Installation Type : Commercial
Length : 12"

Warranty

Limited Warranty : Lifetime

Miscellaneous

Additional Information : <ul> <li>Switches or Magnets are Available Separately</li> <li>Wide Gap 1"+ Gap on Steel</li> <li>Supervisory Loops Available</li> </ul>
Country of Origin : US
Features : End of Line (EOL) Resistor, Self-lock Mounting
