GRI 2020-T-W 3/8" Press Fit Recessed Switch Set, Standard 1/2" Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A, White

Brand: George Risk Industries
ADI #:GI-2020TW Model #: 2020-T-W  Name: GRI 2020-T-W 3/8" Press Fit Recessed Switch Set, Standard 1/2" Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A, White
  • Longer Leads, zip cord or jacketed cable upon request
  • Built-in E.O.L. resistors and diodes upon request
  • Switches or magnets available separately

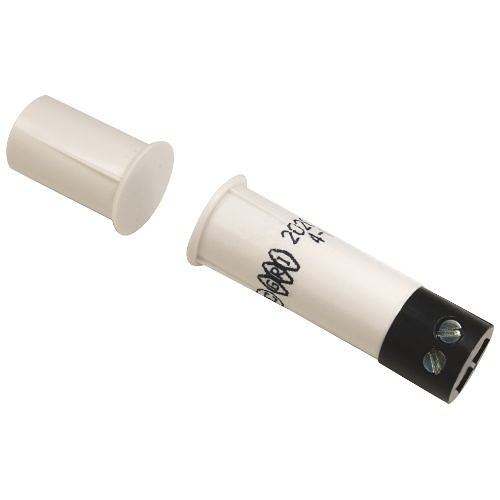

Image of GI-2020TW

Product Overview

GRI's recessed switches are most versatile for a variety of applications, but the switch and magnet installed, should never form a "T" configuration. When the application calls for a wide gap switch, using a bare magnet, keep in mind that GRI's bare magnets are installed with the painted end towards the switch as they are polarity sensitive. When protecting steel doors, use the GRI PA-75 collars with our wide gap switch.

  • Lifetime Warranty
  • Colors: White, Brown, Gray or Black
  • Available in closed loop, open loop, SPDT and DPDT
  • UL and ULC approved
  • Shorter length case
  • Softer fill to protect fragile reed
  • Standard 12" leads or terminal block
  • Longer leads, zip cord or jacketed cable on request
  • Built-in E.O.L. resistors and diodes are available
  • Switch or magnet are available separately
  • Extra wide gap bare magnets
  • Standard gap 1/2" +
  • Wide gap 1" +
  • Extra wide gap 1.5" +
  • Supervisory loops available

General Information

Name : GRI 2020-T-W 3/8" Press Fit Recessed Switch Set, Standard 1/2" Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, A, White , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625005079
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : GI-2020TW
Brand Name : George Risk Industries
Manufacturer : George Risk Industries
Manufacturer Part Number : 2020-T-W
Product Model : 2020-T
Product Name : 2020-T Magnetic Contact
Product Series : 2020
Product Type : Magnetic Contact

Technical Information

Connectivity Technology : Wired
Material : Steel
Standard Gap : 0.5"

Physical Characteristics

Color : White

Power Description

Power Source : DC

Product Information

Contact Type : Closed Loop, N.O.
Installation Type : Hybrid

Warranty

Limited Warranty : Lifetime

Miscellaneous

Additional Information : <ul><li>3/8" Recessed</li><li>Closed loop</li><li>Press to fit</li><li>12" leads #22 AWG leads or screw terminals</li><li>Hermetically sealed</li><li>Plated contacts resist sticking or freezing</li></ul>
Country of Origin : US
