Product Overview
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
- 1000VA
- 15 Amp
- 8 Outlets with Individual Control
- An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
- Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
- The battery is already connected so just plug it in
- Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
- "NEXSYS, alert me when...". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required
- All UPSs include a 6' (1.8m) IEC power cord
- Name, address, and date of birth, please? Easily locate the IP, MAC address and device name via the front LCD screen. You can even see the battery installation date.
- Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards
- Swap it like it's hot. Hot swappable battery from the front access panel for easy service without disrupting the system
- RackLink™ Remote Management Built-In. The NEXSYS UPS is RackLink enabled out of the box and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices.
- Included RS232 port for control
- 2 x dry contact ports for alerts
- 1 x contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold
- 1 x contact is defined to alert users when the battery level is low based on usage with customizable thresholds
- Energy Star Certified
General Information

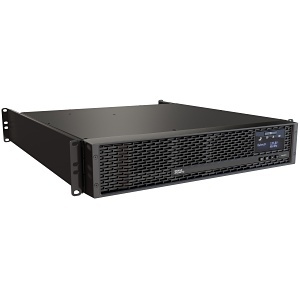

Name : Middle Atlantic UPX-1500R-2 NEXSYS 15A 8-Outlet Bank Controlled UPS Backup Power System, 1500VA , Middle Atlantic by Legrand
Category : UPS
UPC Code : 656747395581
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : NO-UPX000002
Brand Name : Middle Atlantic by Legrand
Manufacturer : Legrand Group
Manufacturer Part Number : UPX-1500R-2
Product Line : NEXSYS
Product Name : NEXSYS 1500VA Rack-mountable UPS
Product Series : UPX
Product Type : Line-interactive UPS
Technical Information
AVR : Yes
Hot Swappable : Yes
Output Voltage : 110V AC, 120V AC, 127V AC
Receptacle Detail : 8 x NEMA 5-15R
Receptacle Type : NEMA 5-15R
Battery Information
DC System Voltage : 36 V DC
Environmental Conditions
Maximum Operating Temperature : 104°F (40°C)
Interfaces/Ports
Serial Port : Yes
Physical Characteristics
Application/Usage : Audio/Video Equipment
Color : Black
Color Family : Black
Depth : 16"
Form Factor : Rack Mount
Height : 3.5"
Product Color : Black
Rack Height : 2U
Weight (Approximate) : 44.09 lb
Width : 19"
Power Description
Input Voltage : 120V AC
Plug/Connector Type : NEMA 5-15P
Waveform Type : Pure Sine Wave
Warranty
Additional Warranty Information : 2 Years Battery
Limited Warranty : 3 Year
Miscellaneous
Energy Star : Yes
Environmental Certification : REACH, RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>NEXSYS 1500VA Rack-mountable UPS</li> <li>6' (1.8m) IEC Power Cord</li> <li>Network Card</li> </ul>
TAA Compliant : No
