Lantronix S3221-1040-OZ Media Converter, 10/100/1000BASET to 2xSFP OZ

Brand: Lantronix
ADI #:P6-S32211432 Model #: S3221-1040-OZ  Name: Lantronix S3221-1040-OZ Media Converter, 10/100/1000BASET to 2xSFP OZ
  • MEF 9, 14 and 21 certified
  • IEEE 802.3ah Link OAM
  • 10K Jumbo Frame Support

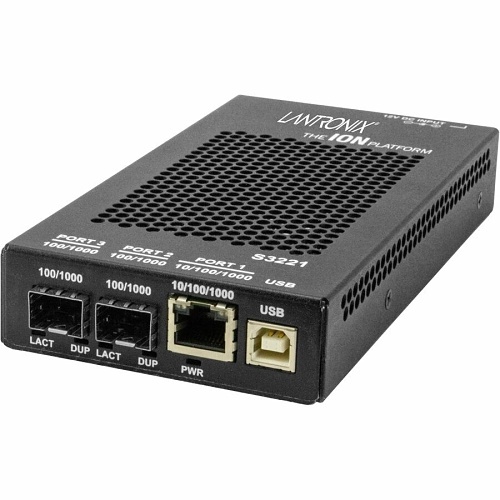

Image of P6-S32211432

Product Overview

Stand-alone Gigabit Ethernet Remotely Managed NID

10/100/1000Base-T to 1000Base-X with OAM/IP-Based Management

The ION S3220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-TX ports and 1000Base-SX/LX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S3220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C3220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S3220 offers a variety of methods for the secure delivery of mobile backhaul applications.

General Information

Name : Lantronix S3221-1040-OZ Media Converter, 10/100/1000BASET to 2xSFP OZ , Lantronix
Category : Media Converters
UPC Code : 648177050239

Specifications

General Information

ADI Part Number : P6-S32211432
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : S32211040OZ
Packaged Quantity : 2
Product Model : S3221-1040
Product Name : S3221-1040 Transceiver/Media Converter
Product Series : S3220
Product Type : Transceiver/Media Converter
Weight : 2 lb

Technical Information

Media Type Supported : Optical Fiber, Twisted Pair

Certifications

TAA Compliant : Yes

I/O Expansions

Expansion Slot Type : SFP
Number of SFP Slots : 2
Number of Total Expansion Slots : 2

Interfaces/Ports

Network (RJ-45) : Yes
Number of Network (RJ-45) Ports : 1
Number of Ports : 1
Number of USB Ports : 1

Media & Performance

Network Technology : 10/100/1000Base-T, 100/1000Base-X

Network & Communication

Ethernet Technology : Gigabit Ethernet

Physical Characteristics

Depth : 6.5"
Height : 1"
Width : 3.3"

Power Description

Input Voltage : 120V AC, 230V AC
Power Source : AC Adapter

Warranty

Limited Warranty : Lifetime

Miscellaneous

Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : S3221-1040 Transceiver/Media ConverterPower Supply - Australia
