Eaton Tripp Lite DWT2655XP Tilt Wall Mount for 26" to 55" TVs and Monitors, -10° to +10° Tilt

Brand: Eaton Tripp Lite
ADI #:TC-DWT2655XP Model #: DWT2655XP  Name: Eaton Tripp Lite DWT2655XP Tilt Wall Mount for 26" to 55" TVs and Monitors, -10° to +10° Tilt
  • Fits 26" to 55" TVs and monitors
  • -10° to +10° tilt for optimal viewing
  • Supports up to 165 lb (74.8 kg)

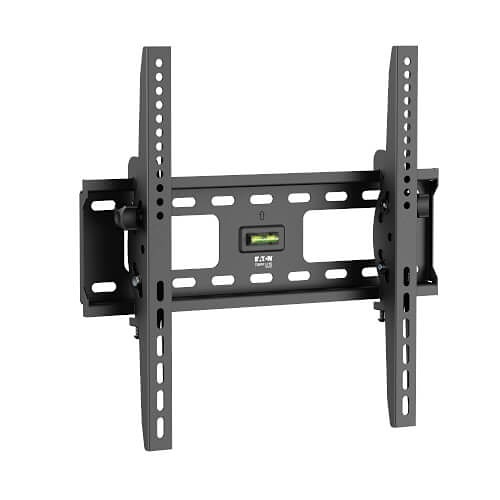

Image of TC-DWT2655XP

Product Overview

The VESA-compliant DWT2655XP Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 26 to 55". A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns:  200x200mm, 200x300mm, 200x400mm, 300x200mm, 300x300mm, 300x400mm, 400x200mm, 400x300mm and 400x400mm.

General Information

Name : Eaton Tripp Lite DWT2655XP Tilt Wall Mount for 26" to 55" TVs and Monitors, -10° to +10° Tilt , Eaton Tripp Lite
Category : Pro Display Accessories & Mounts
UPC Code : 037332183590
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-DWT2655XP
Brand Name : Eaton Tripp Lite
Manufacturer : Eaton
Manufacturer Part Number : DWT2655XP
Packaged Quantity : 1
Product Model : DWT2655XP
Product Name : Tilt Wall Mount for 26" to 55" Flat-Screen Displays
Product Type : Wall Mount
Weight : 6.77 lb

Technical Information

Device Supported : Flat Panel Display
Material : Metal
Maximum Load Capacity : 165 lb

Physical Characteristics

Color : Black
Form Factor : Wall Mount
VESA Mount Compatible : Yes
VESA Mount Standard : 100 x 100, 200 x 100, 200 x 200, 400 x 200, 400 x 400

Product Information

Maximum Screen Size Supported : 55"
Minimum Screen Size Supported : 26"
Number of Displays Supported : 1

Warranty

Limited Warranty : 5-Year

Miscellaneous

Compatibility : LCD TV
Country of Origin : CN
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Adjustable Viewing Angle, Bubble Level, Tilt
