Product Overview

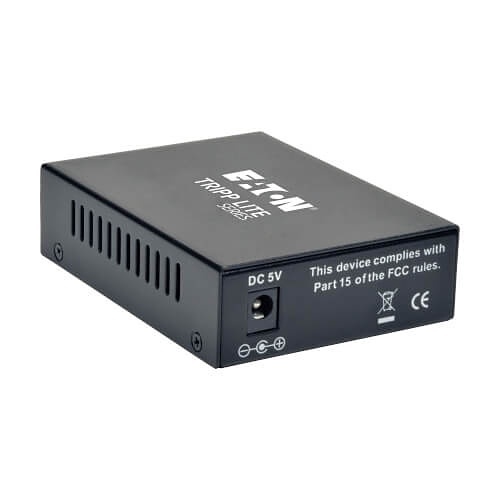

The N785-001-LC-MM 10/100/1000 to Multimode Media Converter (RJ45 to LC) is an economical way to extend the distance of network nodes up to 550 meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
General Information
Name : Eaton Tripp Lite N785-001-LC-MM 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 1804.46' (550 m), 850nm , Eaton Tripp Lite
Category : Media Converters
UPC Code : 037332183927
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-N785001LC
Brand Name : Eaton Tripp Lite
Manufacturer : Eaton
Manufacturer Part Number : N785-001-LC-MM
Packaged Quantity : 1
Product Model : N785-001-LC-MM
Product Name : 10/100/1000 LC Multimode Media Converter, 550M, 850nm
Product Type : Transceiver/Media Converter
Weight : 1 lb
Technical Information
Media Type Supported : Optical Fiber, Twisted Pair
Interfaces/Ports
Network (RJ-45) : Yes
Number of LC Ports : 1
Number of Network (RJ-45) Ports : 1
Number of Ports : 2
Media & Performance
Network Technology : 10/100/1000Base-T, 1000Base-SX
Network & Communication
Ethernet Technology : Gigabit Ethernet
Physical Characteristics
Color : Black
Depth : 2.8"
Height : 1"
Width : 4.7"
Power Description
Input Voltage : 5V DC
Power Source : AC Adapter
Warranty
Limited Warranty : 2-Year
Miscellaneous
Country of Origin : CN
Environmental Certification : RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : <ul><li>10/100/1000 LC Multimode Media Converter, 550M, 850nm</li><li>External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz; Output: 5V, 1.2A)</li></ul>
