Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
General Information

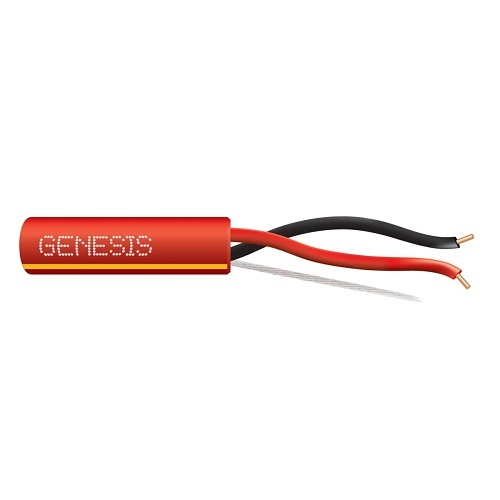

Name : Genesis 4511104Y 16/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Yellow Stripe , Genesis
Category : Plenum Unshielded Cables
UPC Code : 886618237690
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : WG-4511104Y
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 4511104Y
Packaged Quantity : 1
Product Model : 4511104Y
Product Name : 4511104Y - 16 AWG 2C Sol Plenum, Red w Yellow Stripe, 1000 ft. Reel
Product Type : Fire Alarm Cable
Weight : 23.10 lb
Technical Information
American Wire Gauge : 16AWG
Cable Rating : Plenum
Conductor Count : 2
Conductor Material : Bare Copper
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Core/Cladding Diameter : 16/2
Device Supported : Fire Alarm
Jacket Material : LS PVC
Jacket Type : Plenum
Material : Bare Copper
Number of Pairs : 1
Shielding : No
Solid or Stranded : Solid
Category Specific Attributes
Number of Conductors : 2
Certifications
TAA Compliant : Yes
Physical Characteristics
Cable Length : 1000'
Color : Red with Yellow Stripe
Insulation Material : LS-PVC
Package Type : Reel
Warranty
Limited Warranty : 3-Year
Miscellaneous
Country of Origin : US
Environmental Certification : RoHS
Environmentally Friendly : Yes
Indoor/Outdoor : Indoor
