Product Overview

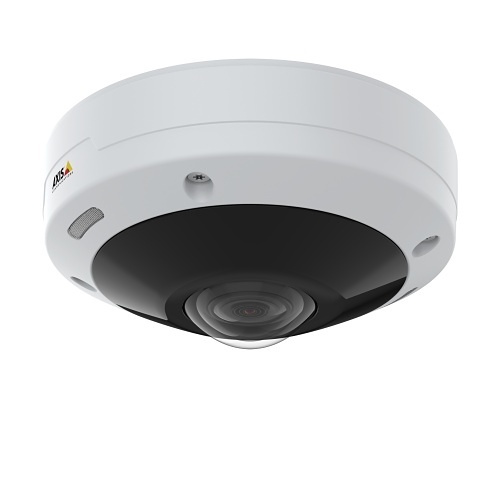

AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.
General Information
Name : AXIS M4308-PLE M43 Series 12MP Outdoor 360° Panoramic IR WDR IP Camera, 1.3mm Lens, White , AXIS Communications
Category : Panoramic Cameras
UPC Code : 7331021072534
Country of Origin : Thailand. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02100001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02100-001
Product Line : M
Product Model : M4308-PLE
Product Name : AXIS M4308-PLE
Product Series : M43
Product Type : Fixed dome cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Weight : 1.87 lb
Technical Information
Aperture : f/2.4
Built-in Microphone : Yes
Connectivity Technology : Wired
Effective Camera Resolution : 12MP
Field of View : Horizontal, Vertical
Lens Type : Fixed
Maximum Aperture : f/2.4
Maximum Frame Rate : 30 fps
Minimum Focal Length : 1.3 mm
Night Vision : Yes
Night Vision Type : Infrared
Video Formats : H.264, H.265, MJPEG, MPEG-4
Camera
Image Sensor Type : CMOS
Night Vision Distance : 49.21 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66
Display & Graphics
Image Sensor Size : 1/1.7"
Maximum Video Resolution : 2880 x 2880
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -40°F (-40°C)
Operating Humidity : 100%
Operating Temperature (T-T) : -40-50°C
Exposure
Longest Shutter Speed : 1 Second
Minimum Illumination : 0.04 lux
Shortest Shutter Speed : 1/22000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 1.3mm
Lens Included : Yes
Maximum Focal Length : 1.3 mm
Memory
Memory Card Supported : Yes
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Durability : Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor : Dome
Height : 2.7"
Power Description
Maximum Power Consumption : 16W
Power over Ethernet (PoE) : Yes
Product Information
Diameter : 5.9"
Mount Type : Bracket Mount, Recessed Mount
Storage
Storage Type : Memory Card
Video
Maximum Resolution : 1280 x 720
Warranty
Limited Warranty : 5-Year
Miscellaneous
Certifications : EAC, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Country of Origin : TH
Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, NEMA TS 2 (2.2.7-2.2.9)
Features : Audio Detection, Built-in Infrared Illuminator, Built-in Microphone, Day/Night, HTTPS Encryption, Motion Detection, Password Protection, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection Rating : IK09, IK10
Indoor/Outdoor : Outdoor
Package Contents : <ul><li>M4308-PLE Panoramic Camera</li><li>Installation Guide</li><li>Windows decoder1-user License</li><li>Drill Hole Template</li><li>Cable Gaskets</li><li>Connector Guard</li><li>I/O Connector</li><li>RESISTORX TR20 Bit</li><li>and more below</li></ul>, Cable Hole Lid, Mounting Bracket, View Protector
