Product Overview

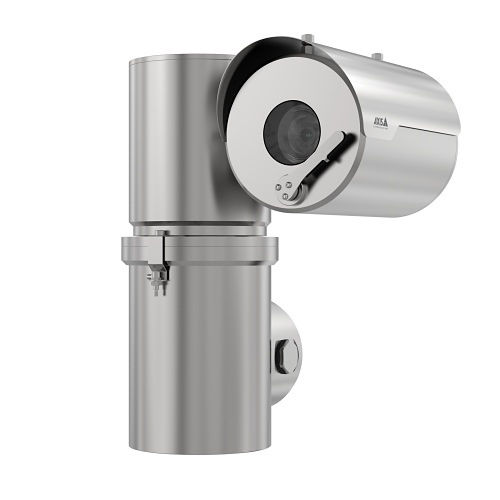

AXIS XPQ1785 is a robust, stainless steel (316L) PTZ camera globally certified for use in potentially combustible environments according to Class I/II/III Div 1 and Zone 1,21 (NEC, CEC, IECEx, ATEX, and more). The built-in smoke alert analytic monitors for signs of smoke or fire. The camera offers total situational awareness with 360° continuous pan and +/- 90° tilt, both at up to 200°/sec. Axis Zipstream provides exceptional savings on bandwidth and storage requirements without compromising image quality. Ease of installation is supported by a compact and low-weight design, with both RJ45 and SFP for fiber or coax and 100–240 V AC power input.
General Information
Name : AXIS XPQ1785 Explosion-Proof PTZ, Stainless Steel , Axis Communications
Category : PTZ Security Cameras
UPC Code : 7331021075658
Country of Origin : Sweden. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02278001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02278001
Product Model : XPQ1785
Product Name : AXIS XPQ1785
Product Type : Explosion-protected cameras; PTZ cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Weight : 50.71 lb
Technical Information
Aperture : f/1.4-4.0
Connectivity Technology : Wired
Field of View : Horizontal, Vertical
Lens Type : Varifocal
Maximum Aperture : f/1.4
Maximum Frame Rate : 60 fps
Minimum Focal Length : 4.30 mm
Night Vision : Yes
Optical Zoom : 32x
Video Formats : H.264, H.264B, H.264B (MPEG-4 Part 10/AVC), H.264M, H.264M (MPEG-4 Part 10/AVC), MJPEG, Motion JPEG, Zipstream
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66, IP67, IP68
Display & Graphics
Image Sensor Size : 1/2.8"
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Minimum Operating Temperature : -76°F (-60°C)
Operating Humidity : 100%
Operating Temperature (T-T) : -60-60°C
Exposure
Longest Shutter Speed : 1 Second
Minimum Illumination : 0.03 lux
Shortest Shutter Speed : 1/66500 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 4.3-137mm
Lens Included : Yes
Maximum Focal Length : 137 mm
Minimum Aperture : f/4
Memory
Memory Card Supported : Yes
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : Z4-01926001, Z4-02121001, Z4-02122001, Z4-02123001
Model Number Replaces : 01926-001, 02122-001, 02123-001, XP40-Q1785
Physical Characteristics
Color : White
Depth : 11.9"
Durability : Dustproof, Explosionproof, Impact Resistant, Waterproof, Weatherproof
Form Factor : Turret
Height : 14.6"
Width : 9.4"
Power Description
Maximum Power Consumption : 150W
Product Information
Mount Type : Pole Mount, Wall Mount
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Maximum Resolution : 1280 x 720
Miscellaneous
Certifications : CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 32 Class A
Certifications & Standards : ONVIF G, ONVIF S, ONVIF T
Country of Origin : SE
Environmental Certification : UL 50E
Features : Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, PTZ, Smoke Detector, Video Management System, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
