Product Overview

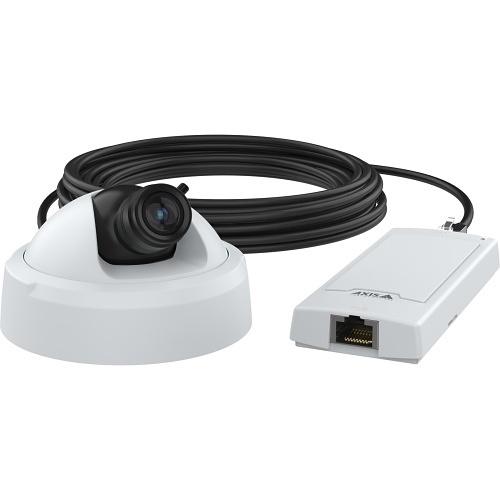

Based on the modular concept, AXIS P1275 Mk II features a small main unit that connects via cable to a small dome sensor, so the two parts can be placed separately from each other. With a 2.8-6 mm varifocal lens, you can adjust the field of view 99°- 53° and choose between clear overviews or detailed close-ups. Ideal for a wide range of applications, it’s easy to install in tight spaces. The dome sensor can be mounted up to 15 m from the main unit and a detachable cable ensures flexible installation and upgrade. Additionally, a deep learning processing unit enables the use of advanced analytics.
General Information
Name : AXIS 02859-001 HDTV 1080p Mk II Modular Varifocal Dome IP Camera, 99°-55° Field of View, 2.8-6mm Lens , Axis Communications
Category : Covert Cameras
UPC Code : 7331021085459
Country of Origin : Thailand. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02859001
Brand Name : AXIS Communications
Manufacturer : Axis Communications
Manufacturer Part Number : 02859-001
Product Model : P1275 Mk II
Product Name : AXIS P1275 Mk II
Product Series : P12
Product Type : Fixed cameras
Supported Network Protocols : IPv6 USGv6|NIST SP500-267
Weight : 2.65 oz
Technical Information
Aperture : f/2.0
Connectivity Technology : Wired
Field of View : Horizontal, Vertical
Lens Type : Varifocal
Maximum Aperture : f/2.0
Maximum Frame Rate : 30 fps
Minimum Focal Length : 2.80 mm
Optical Zoom : 2.1x
Video Formats : H.264, H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.265, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, Zipstream
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP3X
TAA Compliant : Yes
Display & Graphics
Image Sensor Size : 1/2.9"
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 113°F (45°C)
Minimum Operating Temperature : -4°F (-20°C)
Operating Humidity : 85%
Operating Temperature (T-T) : -20-45°C
Exposure
Longest Shutter Speed : 1/5 Second
Minimum Illumination : 0.2 lux
Shortest Shutter Speed : 1/16500 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8-6mm
Lens Included : Yes
Maximum Focal Length : 6 mm
Memory
Memory Card Supported : Yes
Network & Communication
Remote Management : Yes
Others
ADI Part Number Replaces : Z4-01559001, Z4-0928001
Model Number Replaces : 01559-001, 0928-001, P1275
Physical Characteristics
Color : White
Power Description
Maximum Power Consumption : 4W
Power over Ethernet (PoE) : Yes
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Maximum Resolution : 1280 x 720
Miscellaneous
Certifications : CISPR 32 Class A, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X
Features : Alarm Triggering, Automatic White Balance, HTTPS Encryption, Mirror, Password Protection, Privacy Masking, Privacy Protection, SD Card Local Storage, White Balance, Wide Dynamic Range
Indoor/Outdoor : Indoor
