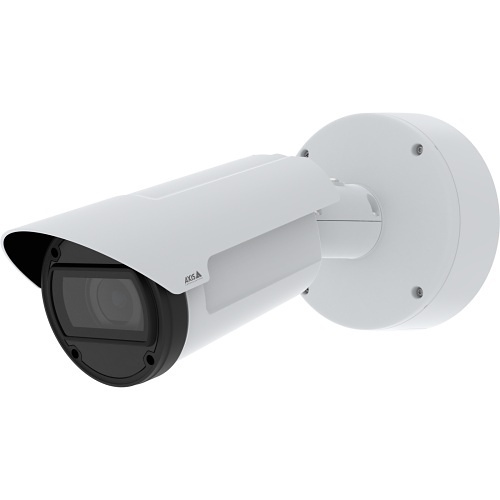

Name: AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White
Brand: Axis Communications
SKU: Z4-03019001
Price: $0.00

AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White

Brand: Axis Communications

ADI #:Z4-03019001 Model #: 03019-001 Name: AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White

Built-in cybersecurity with Axis Edge Vault
Extreme detail at great distances
High light-sensitive 4/3” sensor

Product Overview

Built on a dual Axis system-on-chip, this all-in-one, outdoor-ready bullet camera delivers superior 41 MP resolution. And a 4/3” image sensor ensures exceptional low-light performance. It’s available with a wide lens for open areas or a tele lens for surveillance from a distance. Enclosed in a robust aluminum casing, it includes a mounting arm for easy installation. Plus, a spacious back box ensures secure cable management. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. Furthermore, PoE out lets you connect and power another device without additional cabling.

General Information

Name : AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White , Axis Communications
Category : Bullet Cameras
UPC Code : 7331021087910
Country of Origin : Poland. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : Z4-03019001

Brand Name : AXIS Communications

Manufacturer : Axis Communications

Manufacturer Part Number : 03019-001

Product Model : Q1809-LE

Product Name : AXIS Q1809-LE 150 mm

Product Series : Q18

Product Type : Fixed cameras

Supported Network Protocols : IPv6 USGv6|NIST SP500-267

Technical Information

Aperture : f/4.0

Field of View : Horizontal, Vertical

Lens Type : Varifocal

Maximum Frame Rate : 30 fps

Minimum Focal Length : 50 mm

Night Vision : Yes

Optical Zoom : 3x

Camera

Image Sensor Type : CMOS

Certifications

Ingress Protection Rating : IP66, IP67

Display & Graphics

Image Sensor Size : 4/3"

Maximum Video Resolution : 7424 x 5568

Environmental Conditions

Operating Temperature (T-T) : -40-55°C

Exposure

Minimum Illumination : 0.04 lux

Lens

Focal Length : 50-150mm

Lens Included : Yes

Maximum Focal Length : 150 mm

Memory

Memory Card Supported : Yes

Network & Communication

Remote Management : Yes

Others

ADI Part Number Replaces : CZ-0963001, Z4-01118001

Model Number Replaces : 01118-001, 0963-001

Physical Characteristics

Color : White

Power Description

Maximum Power Consumption : 51W

Power over Ethernet (PoE) : Yes

Storage

Recording Formats : 8K

Video

Maximum Resolution : 1280 x 720

Miscellaneous

Certifications : CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T

Environmental Certification : IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Impact Protection Rating : IK08, IK10

Indoor/Outdoor : Outdoor
